Customized Scooter 36V 10Ah Lithium Ion Battery CC Charging Mode

Product Categories
Huizhou Shikeqi Technology Co., Ltd.
Contact Now

Customized Scooter 36V 10Ah Lithium Ion Battery CC Charging Mode

  • 1
  • 2

Place of Origin : Guangdong, China, China

Model Number : 18650-36V

Brand Name : CUVGA

Certification : CE,CB,KC,FCC,ROHS,MSDS,UN38.3

Supply Ability : 500 Set/Sets per Day

MOQ : 100 sets

Price : $89.47 - $103.85/sets

Delivery Time : 5-8 work days

Packaging Details : Boxed

Type : Lithium Battery, Lithium Battery

Cell : 18650-36V

Application : Electric Bicycles/Scooters, electric scooter

Charging limit voltage : 42V

Max. discharge current : 15A

Warranty : 1 year

Pack Assembly Model : 10S3P

Nominal voltage : 36V

Overall size : 334*68*42mm

Charging Mode : CC/CV

Contact Now

Customized 18650-10S3P 36V 10Ah Lithium Ion Battery for Kick Scooter

Product Paramenters
Rated capacity
10AH(10000mAh)
Rated voltage
36V
Technical description
3.7V 18650 Cell
Unit combination
3-parallel 10 series
Battery size
40*70*280mm (± 2mm)
Weight
about 1.5kg
Number of batteries (parallel * series)
30pcs
Discharge voltage
30/ -1V
Charging voltage
42V
Rated discharge current
15A
Maximum instantaneous discharge current
30A
Maximum continuous discharge current
15A
Charging Mode
CC/CV
Standard charging current
2A
Charging time of standard charging current
5-7h
Charging temperature range
0-45 ℃
Discharge temperature range
-20-60 ℃
Products Description
* Voltage: 36V, Capacity: 10Ah(10000mAh), Size: 40*70*280mm . Adapted power: for 200W 250W 350W 500W E-bike motor. with 20A BMS+42V Charger + T or XT60 discharge plug.
* Wide Range of Applications: Fit for 36V electric bicycles, e-bike, electric scooters, electric tricycles, golf carts, airplane
models, electric wheelchair, power tools, adult electric bicycles, etc.

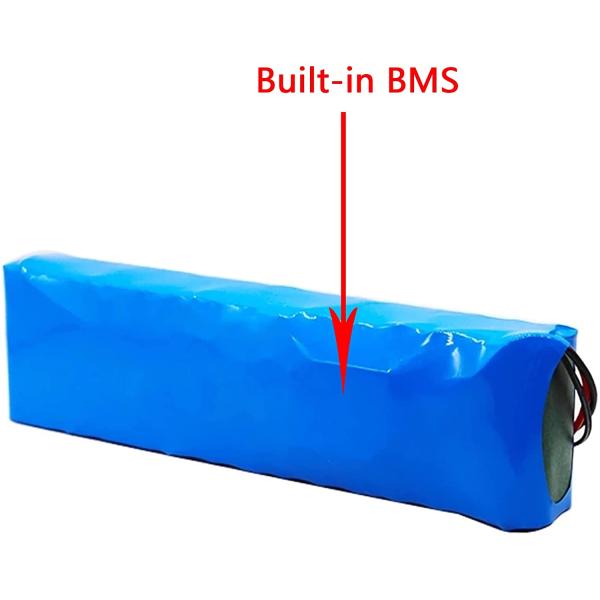

* Protect the Battery Pack: Built-in BMS protection board to prevent battery overcharge, overdischarge, overcurrent, short
circuit, etc. Effectively ensure the service life and safety of the battery pack.
* Note: Do not expose to rain for a long time. To prevent the battery pack from being bumped or squeezed, we recommend that you put the battery in a bag or case.
* Service: If this battery pack is not suitable for your device, please contact me. We can recommend or customize other lithium battery packs suitable for you.
Customized Scooter 36V 10Ah Lithium Ion Battery CC Charging Mode
Customized Scooter 36V 10Ah Lithium Ion Battery CC Charging Mode
Customized Scooter 36V 10Ah Lithium Ion Battery CC Charging Mode
Customized Scooter 36V 10Ah Lithium Ion Battery CC Charging Mode
Customized Scooter 36V 10Ah Lithium Ion Battery CC Charging Mode

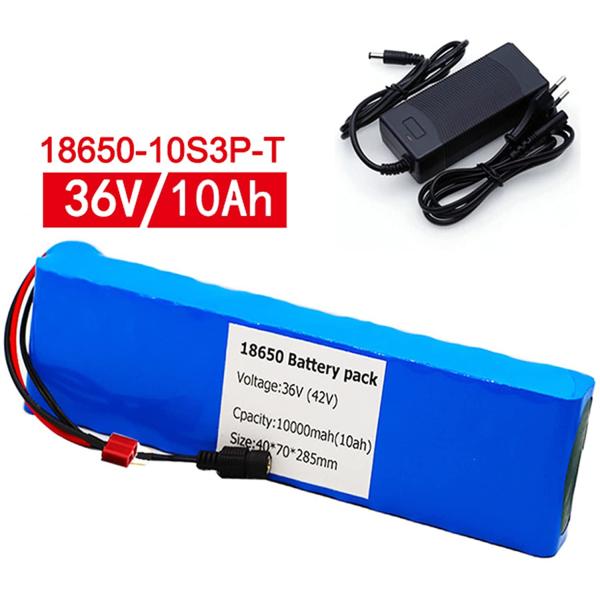

36V 10S 3P 10Ah 18650 lithium ion battery, 10000mAh electric bicycle battery pack, suitable for 500W 350W 250W 200W motors, with
20A BMS and 42V charger

Suitable for electric bicycles, e-bike, electric scooters, electric tricycles, electric tools, golf carts, airplane models,
electric wheelchairs, Pocket electric bicycle, adult electric bicycle, etc.
Parts Included:
1. 36V 10Ah Lithium Battery Pack
2. 42V 2A charger

Notice:
★ The size is manually measured, there may be some errors, please refer to the received package size, please understand.
★ This shop provides professional consulting, customization, after-sales and other services for every customer. If you have any
questions, please feel free to contact us, and we will reply to you within 24 hours.
